Seals & Packing

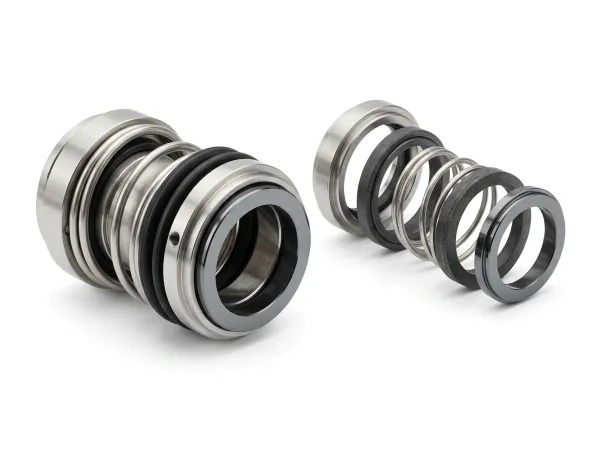

Mechanical Seals
Rotary & Stationary Seal Assemblies
We supply mechanical shaft seals for centrifugal pumps, mixers, agitators, and other rotating equipment in single, double (dual), and cartridge configurations. Face materials range from carbon-graphite and silicon carbide to tungsten carbide. Getting the face pairing right matters: the wrong combination in abrasive slurry will wear through in weeks.
Types & Variants
Single Seals
Standard configuration with one set of sealing faces. Suited to most clean-water and general-duty pump applications.
Double (Dual) Seals
Two seal faces in series with a barrier or buffer fluid between them. Required for hazardous, toxic, or zero-emission service.
Cartridge Seals
Pre-assembled, pre-set units that install as one piece. Takes the guesswork out of setting the seal face gap, which is a common source of premature failure with component seals.
Component Seals
Individual seal faces, O-rings, springs, and drive components for rebuilding existing seal assemblies.
Common Applications
Water & Wastewater Pumps
Centrifugal pumps in treatment plants, lift stations, and distribution networks.
Chemical Process Pumps
ANSI and ISO chemical-duty pumps handling corrosive, abrasive, or hazardous media.
Mixers & Agitators
Shaft seals for side-entry and top-entry mixers in tanks and reactors.
Materials & Standards
Materials
- Carbon-graphite (antimony impregnated)
- Silicon carbide (SiC), reaction-bonded and sintered
- Tungsten carbide (WC)
- Alumina ceramic
- Viton, EPDM, PTFE secondary seals
- Stainless steel, Hastelloy hardware
Standards
- API 682 / ISO 21049 — Pumps, shaft sealing systems
- EN 12756 — Mechanical seals, principal dimensions
Related Products

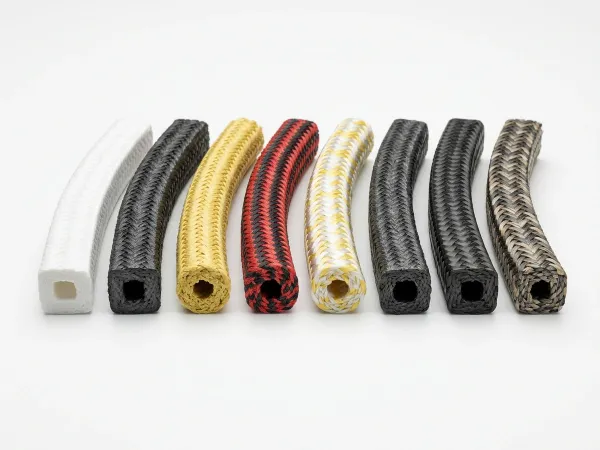

Compression Packing
Braided Packing for Pumps & Valves
Braided packing in PTFE, graphite, aramid, and hybrid constructions for pumps, valves, and rotating equipment.
Explore Product
O-Rings & Cord
Standard & Custom Elastomer O-Rings and Cord Stock
O-rings and cord stock in Nitrile, Viton, EPDM, silicone, and speciality compounds. Standard metric and imperial sizes plus custom profiles and cut-to-length cord.
Explore Product

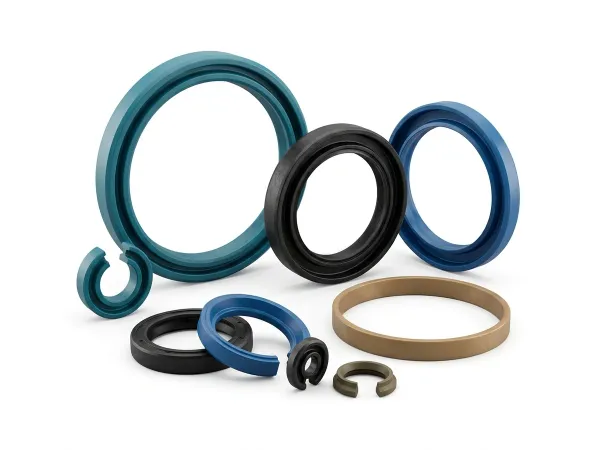

Hydraulic & Pneumatic Seals
Rod, Piston & Cylinder Seals
Machined seals for hydraulic and pneumatic cylinders including rod seals, piston seals, wipers, and wear rings.
Explore ProductNeed Mechanical Seals?
Pump make and model, shaft size, process conditions: that's our starting point. We supply new seals and carry rebuild components for most major brands.
