Gaskets
Metal Gaskets
Spiral Wound, Ring Joint, Kammprofile, Jacketed
We supply metallic and semi-metallic gaskets for high-pressure, high-temperature flange connections. From standard ASME sizes to custom-engineered profiles in exotic alloys, we cover spiral wound, ring joint, Kammprofile, and metal jacketed styles.

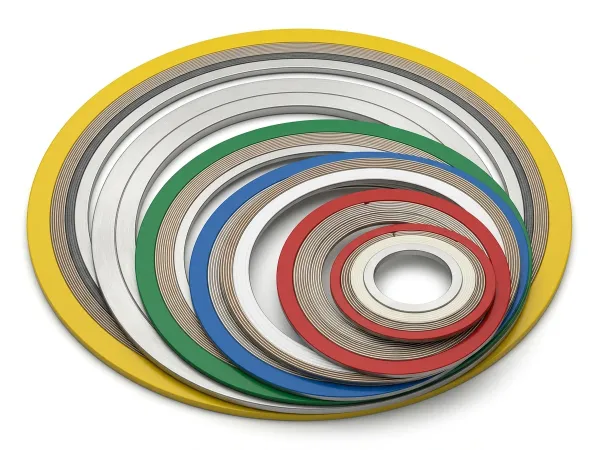

Spiral Wound Gaskets
Our most widely specified metal gasket. Alternating layers of metal strip and soft filler are wound into a precision gasket that recovers under bolt-load relaxation. We stock standard ASME B16.20 sizes and manufacture custom profiles to order. For ASME B16.20 colour coding, style selection, and full technical specifications, see our Spiral Wound Gasket Technical Guide.
Standard (Outer Guide Ring)
Centre winding with an outer guide ring. For raised-face flanges. Available in Class 150 through Class 2500.
With Inner Ring
Additional inner ring prevents inward buckling and turbulence erosion. Recommended for Class 600+ and vacuum service.
Custom Wound
Non-standard sizes, nickel superalloys (Inconel, Hastelloy, Monel), and custom filler materials to your specification.
Ring Joint Gaskets
Ring joint gaskets are solid-metal seals for high-integrity flanged connections — used where zero-leakage performance is non-negotiable, primarily upstream oil and gas, high-pressure steam, and subsea pipework. We machine to API 6A (wellhead equipment) and ASME B16.20 profiles for ring-type joint (RTJ) flanges. Available in oval, octagonal, and BX profiles in carbon steel, stainless, Inconel, and Monel.
Oval
Standard RTJ applications
Octagonal
Higher pressure, better recovery
BX
API 6BX wellhead and tree
Kammprofile & Jacketed Gaskets
Kammprofile
Serrated metal core with soft facing layers (graphite, PTFE, or Mica). Combines the recovery of a metallic gasket with the conformability of a soft seal. Suited to heat exchangers and high-bolt-load flanges.
Metal Jacketed
Soft filler enclosed in a metal jacket (single or double). Available in corrugated, flat, and profiled styles for heat exchangers, valve bonnets, and vessel flanges.
Materials & Standards
Metal Alloys
- 304 / 304L Stainless Steel
- 316 / 316L Stainless Steel
- Carbon Steel
- Inconel 600 / 625
- Monel 400
- Hastelloy C-276
- Titanium
- Other speciality grades available on request
Standards
- ASME B16.20-2023 — Metallic gaskets for pipe flanges
- API 6A 21st Ed. — Wellhead and tree equipment
- EN 1514-2:2014+A1:2021 — Spiral wound gaskets
- DIN 2697 — Kammprofile gaskets
- BS EN 1514-2:2014+A1:2021 — Spiral wound gaskets (supersedes BS 3381)
Related Products
Raw Materials
Sheet, Roll & Bulk Stock
Compressed fibre, rubber sheet, PTFE, flexible graphite, engineering plastics, foams, and metal shim, supplied as raw stock for in-house cutting, fabrication, or repair.
Explore Product

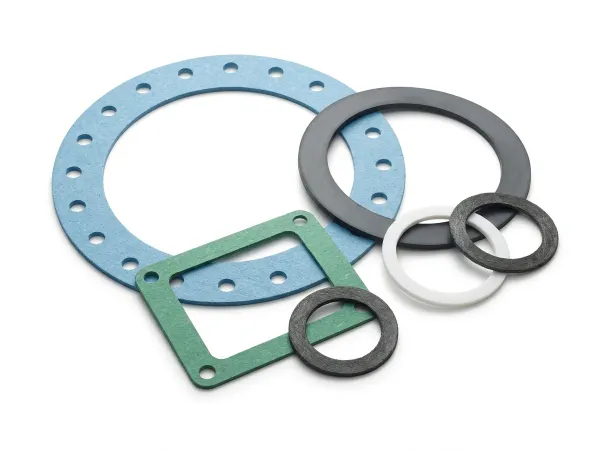

Soft-Cut Gaskets
CNAF, Rubber, PTFE, Graphite, and more
Non-metallic gaskets cut to your drawings in compressed fibre, rubber, PTFE, flexible graphite, and other sheet materials.
Explore Product

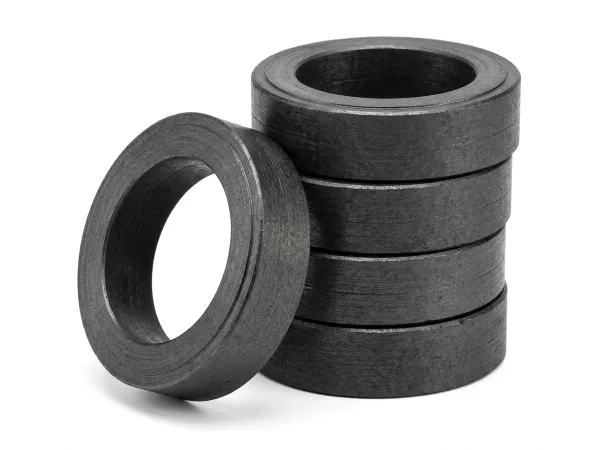

Die Formed Rings
